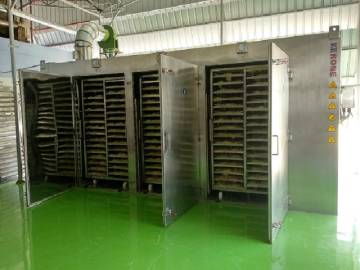

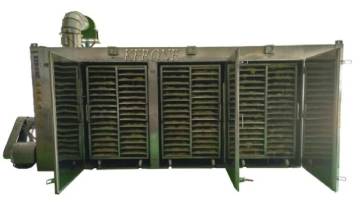

Tray Dryer is used for the best drying results in conventional process.It is a double walled cabinet with one or two doors.The gap between two walls is filled with high density fibre glass wool insulation material to avoid heat transfer.Door are provided with gaskets.Stainless steel trays are placed are placed on the movable trolleys.

Dynamically balanced axial flow type blower fans are provided air circulation in the drying chamber during process.Machine is provided with control panel board with process timer.Digital temperature controller cum indicator etc.

Capacity 6,12,24,48,96 192 trays.

Satndard & GMP models anailable SS 304/SS316/MS internal & externals.

Stainless steel tray in S.S. 304/S.S. 316 Quality.


All stainless steel 304/316/316L construction for pharmaceutical application or external mild steel with SS internal parts. Electric /Steam / Thermic Fluid heating

Control panel board with process timer.(Circular chart recorder can be provided on demand at extra cost.) Sturdy trolleys with castor wheels. Air filter at inlet. (Hepe filter can be provided on demand a extra cost). Easy accessibility of impellers for cleaning.

The exhaust duct,blower & air inlet filters can be custom built to keep out the production area with suitable ducting.
